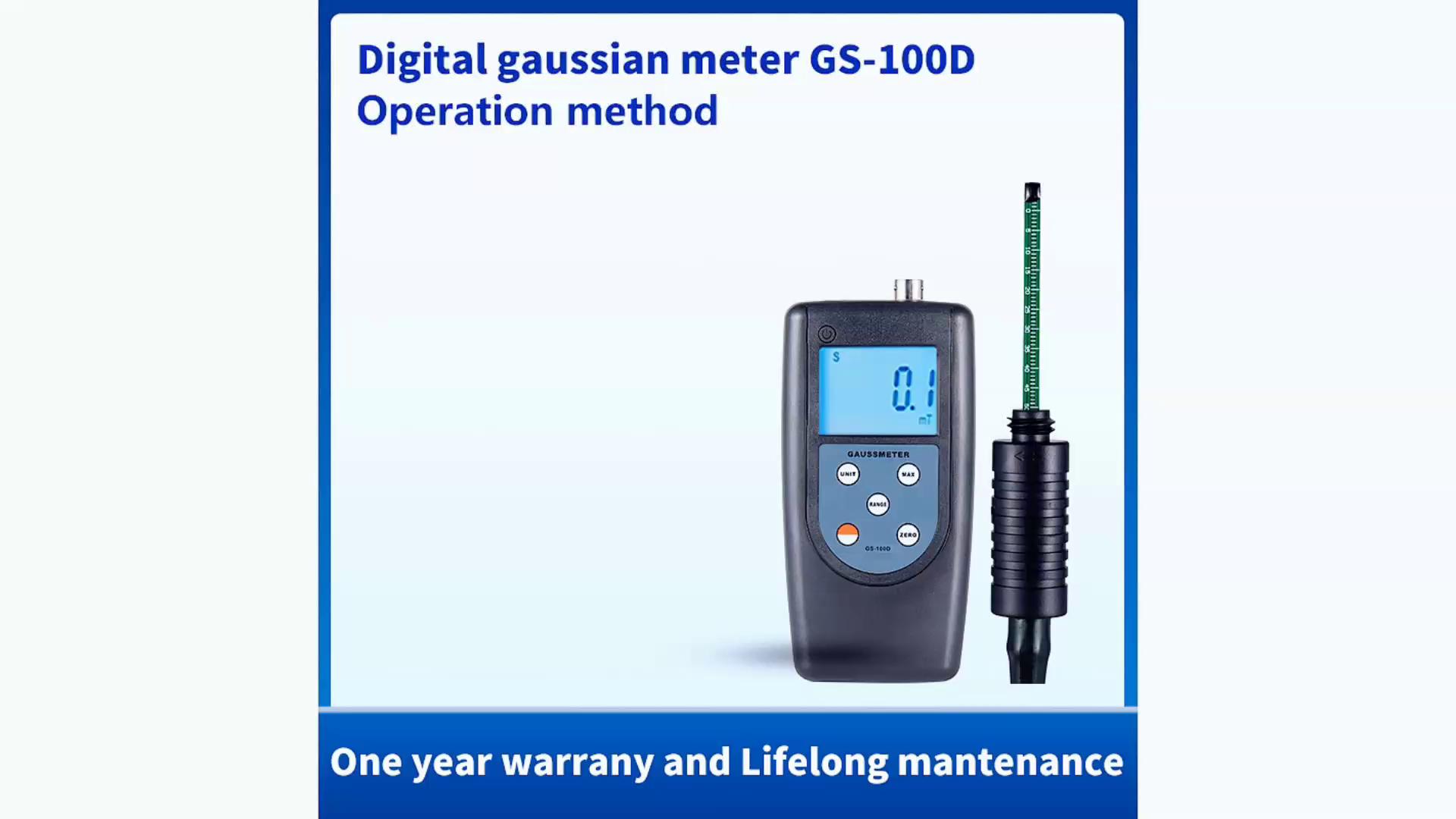

GS-100D
Spec：
D. Used for measuring the magnetic induction intensity of DC magnetic field, radiation magnetic field, remanence magnetic field, earth magnetic field, and other magnetic fields.
Model：
GS-100D
產(chǎn)品詳情
Features
* Portable, wide range.
* Easy to operate, clear LIQUID crystal display.
* There are measurement/peak retention, mT/Gs unit conversion.
* 200mT/2000mT range conversion, etc.
Principle
The tension sensor is based on Hall's principle.The circuit uses a low drift amplifier and a high stable power supply, controlled by a single chip microcomputer, and displays the measured values on a 41/2LCD.
Specifications
Measuring range
0mT~200mT~2000mT
The accuracy of
DC,5%(measured in a uniform magnetic field)
Magnetic field under test
Dc magnetic field (static magnetic field)
Functional specifications
Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely
